· The System
How OxySync Works
A complete, whole-home oxygen enrichment system — engineered for high-altitude residential installations and designed to run itself.
— Overview
One System. Every Room. Zero Effort.
OxySync is built around a simple idea — your home at altitude should feel as comfortable as your home at sea level. The system monitors oxygen levels in each room independently, delivers enriched air on a fully automated schedule, and manages every cycle in the background without any input from you.
It is designed and installed by authorized dealers who configure the entire system to your home’s specific layout, elevation, and usage patterns. Once it’s set up, you don’t touch it. It just works.
— System Components
Built From Three Core Components

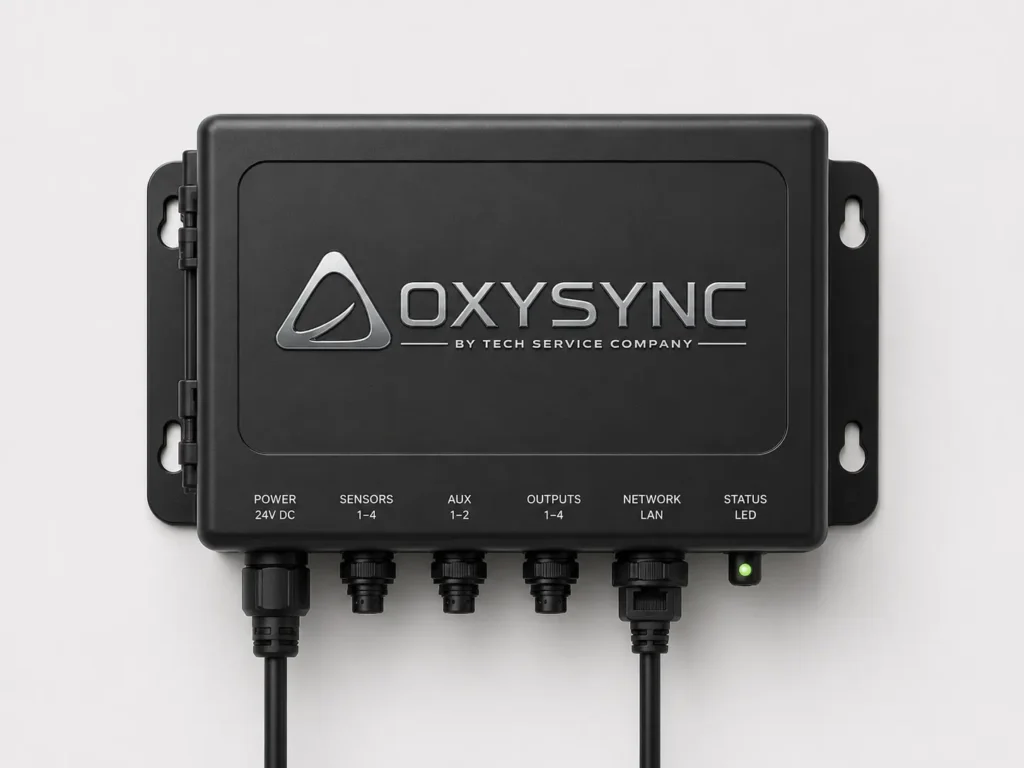

The Base Controller
The Brain of the System
The base controller is the central hub of every OxySync installation. It manages all zone activity, coordinates oxygen delivery schedules, processes sensor data, and enforces safety limits — all from a single gasket-sealed enclosure mounted out of sight.
Key Details
- Supports 8, 16, or 32 relay zones
- WiFi 2.4/5 GHz or Ethernet connectivity
- 12 VDC low-voltage operation
- Gasket-sealed thermoplastic housing

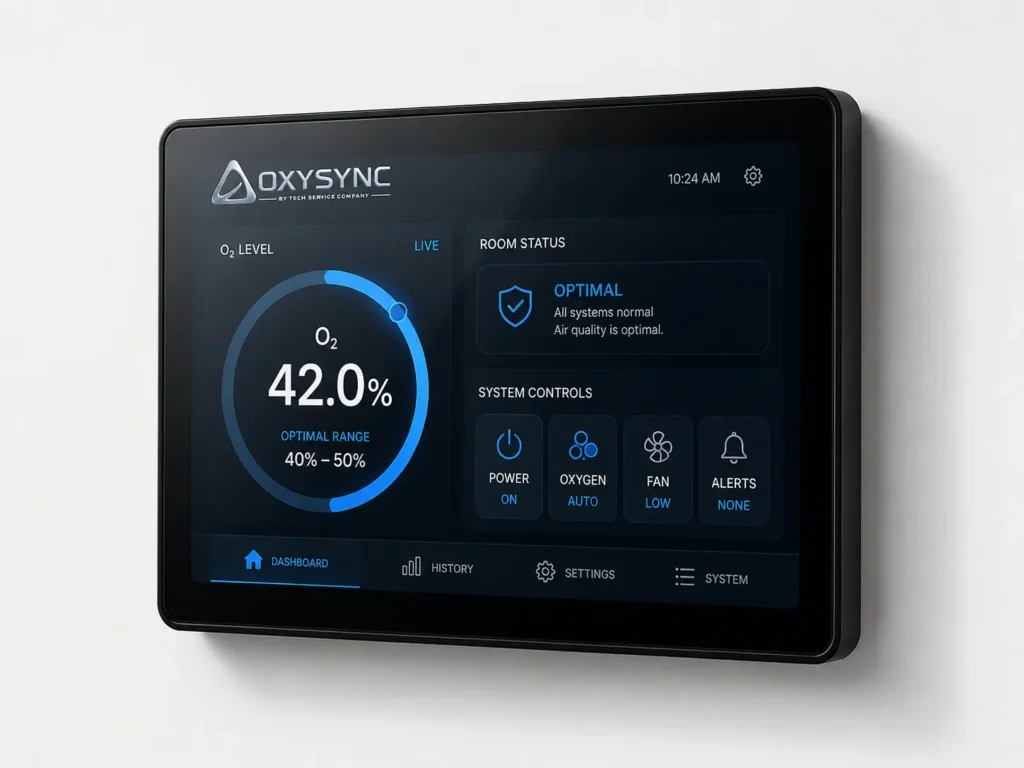

The Control Screen
Your Window Into the System
The capacitive touchscreen display gives homeowners and installers a clear, real-time view of every zone — what’s active, what’s scheduled, and what the current oxygen levels are. Available as a wall-mounted panel or a tabletop unit.
Key Details
- Wall mount: 8.1" × 5.1" anodized aluminum, 3-gang box
- Tabletop: 8.4" × 7.9" weighted ABS base
- Capacitive multi-touch
- PoE powered (wall) / 5VDC (tabletop)
The In-Room Sensor
Always Watching. Always Accurate.
Each oxygenated zone gets its own dedicated sensor — a compact, single-gang wall unit with an integrated micro-fan that continuously draws fresh air across the sensing element. This active airflow design ensures real-time accuracy, not stagnant guesswork.
Key Details
- Bluetooth LE wireless — 50ft open / 30ft obstructed
- Integrated 30mm micro-fan for active airflow sampling
- Single-gang remodel-style enclosure
- Recommended placement: headboard wall, within 6 feet of bed
— Control Modes
Two Ways to Run Your System
Sensor-Based Control
The system uses live oxygen readings from each in-room sensor to automatically regulate output. When levels drop below your selected altitude equivalency target, the system activates. When target is reached, it enters a controlled cooldown. Precise, responsive, and fully
hands-free.
Best for: Primary residences and bedrooms where precision matters most.
Timer-Based Control
Zones operate on a fixed programmed schedule — ideal where sensor monitoring isn't required or where a simpler, cost-efficient installation is preferred. Runs automatically with or without a wall-mounted screen, giving installers flexible options for secondary rooms and
guest areas.
Best for: Guest rooms, secondary zones, or budget-conscious installations.
— On-Demand Feature

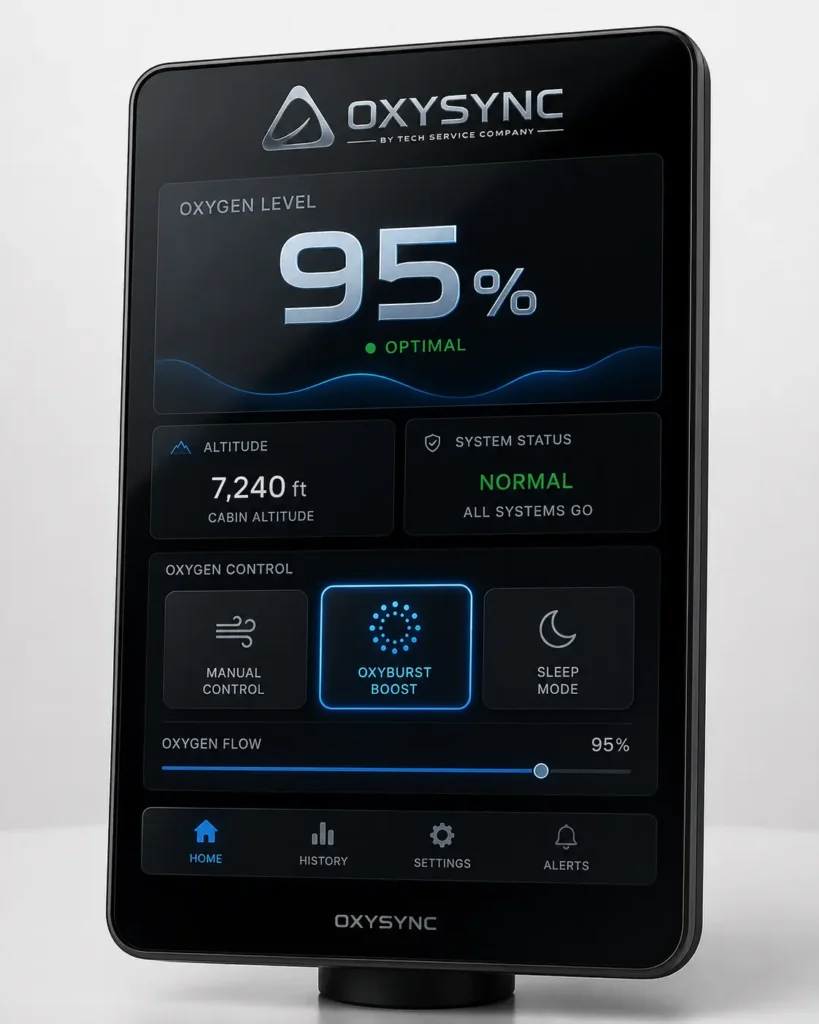

Need Oxygen Right Now? That's Oxyburst.
Oxyburst is an on-demand mode that delivers an immediate oxygen cycle to any selected zone at the press of a button — outside of the normal schedule, without affecting it. Duration is adjustable. It kicks in instantly.
Perfect for daytime naps, post-exercise recovery, or arriving guests who need to acclimate quickly.
— Built-In Protection
Safety Is Not a Setting. It's Hard-Coded.
OxySync includes a hard-coded oxygen ceiling of 27% — the system will never allow oxygen concentration to exceed this threshold under any operating condition. Continuous monitoring, automatic regulation, and scheduled zone separation all work together to ensure safe, controlled enrichment at all times.
No user oversight required. No settings to misconfigure.
27% O₂ Hard Limit
Cannot be overridden
Automatic Cooldown Cycling
Protects equipment and environment
Continuous Monitoring
Every zone, all the time
Scheduled Zone Separation
Prevents system overlap
— Specifications
Technical Specifications
| Component | Parameter | Specification |
|---|---|---|
| Base Controller | Zone Configs | 8 / 16 / 32 relay configurations |
| Dimensions | 280mm × 190mm × 140mm | |
| Power | 12 VDC, 5.5mm barrel, center positive | |
| Relay Rating | 10A @ 250VAC / 10A dry contact | |
| Connectivity | WiFi 2.4/5 GHz, WPA2/WPA3 | |
| Ethernet | Ethernet 10/100 | |
| Remote Screen — Wall | Dimensions | 8.1" × 5.1" × 0.75" |
| Mounting | 3-gang electrical box | |
| Material | Anodized aluminum | |
| Power | PoE IEEE 802.3af/at | |
| Remote Screen — Tabletop | Dimensions | 8.4"w × 7.9"h × 1"d |
| Material | ABS plastic | |
| Power | 5 VDC, 5.5mm barrel | |
| Sensor | Format | Single-gang wall box |
| Wireless | Bluetooth LE 2.4 GHz | |
| Range | 50ft open / 30ft obstructed | |
| Fan | 30mm axial, continuous active sampling | |
| Power | 5 VDC ~250mA | |
| System | O₂ Safety Limit | 27% maximum, hard-coded |
| Use | Indoor residential only |
— Get Started
Ready to Add OxySync to Your Home?
OxySync is sold and installed exclusively through our authorized dealer network. Get in touch and we’ll connect you with the right installer for your area.
